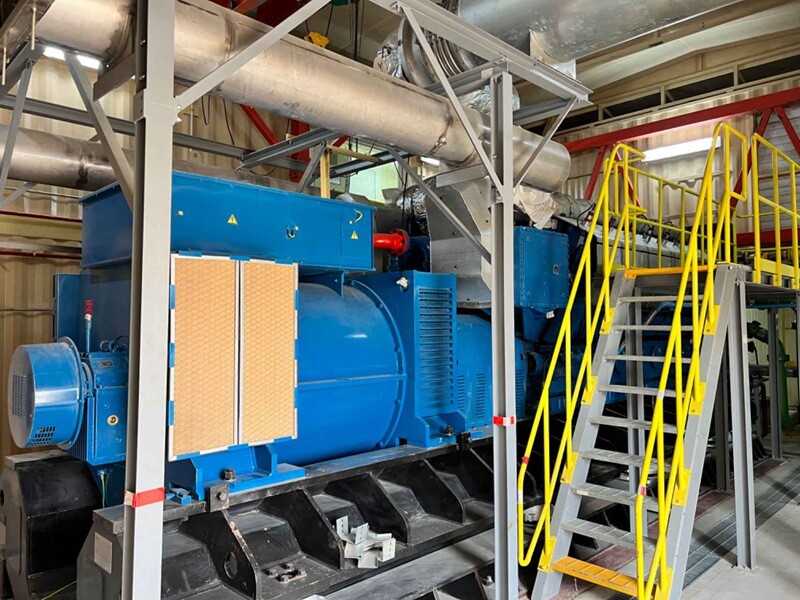

4000kw Gas Generator
Advantage
The 2632 series high power natural gas engine have the following characteristic: high pressure, high power, high efficiency, low emission, green, environment protection and other characteristics. The engine’s gas consumption rate is 8500kJ/kw▪h, thermal efficiency is greater than 44%.
Phone : +86 15063431911
Wechat : +86 15063431911
Whatsapp : +86 16653606916
Email : fddlws@163.com
Contact Us

Product Description

Production Characteristic

▪λ accurate control ( Jichai: up to 2.3) lean burning;

▪High efficiency (Jichai test level: up to 44%), security (Installation of explosion- proof devices, double-walled gas pipes and oil mist detectors for each system);

▪High pressurization, strong Miller, low emissions;

▪Knock control technology and explosion pressure monitoring (or in-cylinder combustion temperature)

▪Multipoint Electrical Control ( Port Injection); engine management system

▪The optional control of the intake air amount and the intake time of the main combustion chamber and the pre-chamber;

▪Load balance ( According to the cylinder rear temperature control system online correction);

▪High turbocharged, two stage cooling;

▪Self-cleaning filter technology;

▪The filter element adopts the metal filter element and can realize automatic cleaning without replacing the filter element. It can not only guarantee the oil filter requirements of th engine, but also extend the service life, reduce the use cost and maintenance labor intensity.

Genset Model4000GF10-T3600GF-T
Alternator modelBrush-less Excitation, Automatic Voltage Regulation
Rated power4000kW3600kW
Rated voltage6300V/10500V/13800V
Rated frequency50Hz60Hz
Rated power factor0.8
Engine Model16V 26/32
TypeFour strokes, water cooling, turbocharged intercooling, pre-burning zone, multi-point injection, compression ratio control
No. of cylinder16
Bore260mm
Stroke320mm
Single cylinder displacement17L
Rated speed1000r/min900r/min
Rated power4200kW3780kW
Gas consumption≤8600kJ/kW.h
Oil consumption≤0.3g/kW.h
Cooling typeOpen type-cooling tower/Closed type-Horizontal Radiator
Starting methodAir starting

Transport And Installation

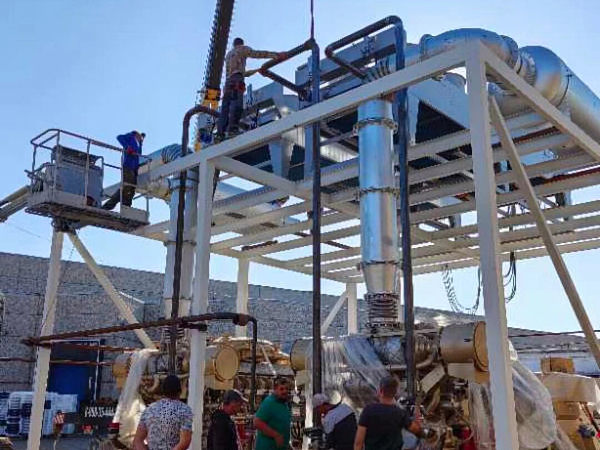

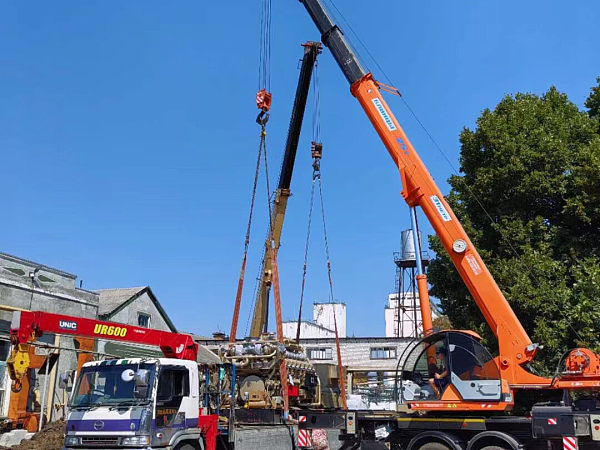

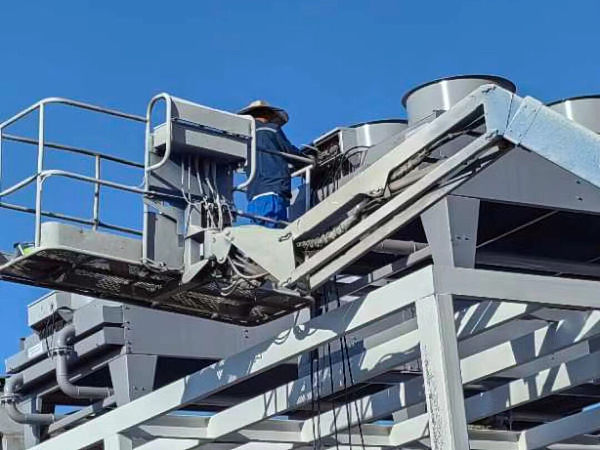

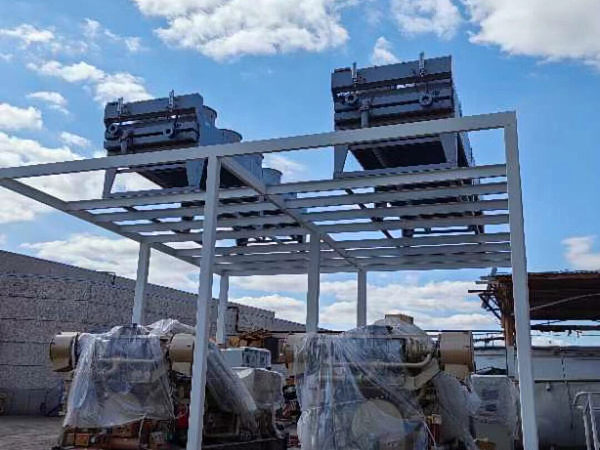

  • Install
  • Install
  • Install
  • Install

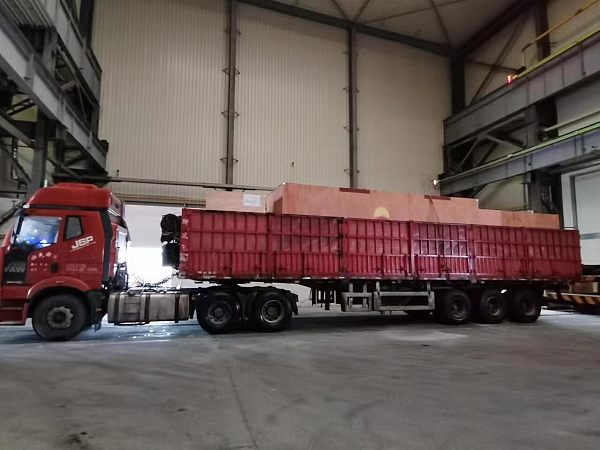

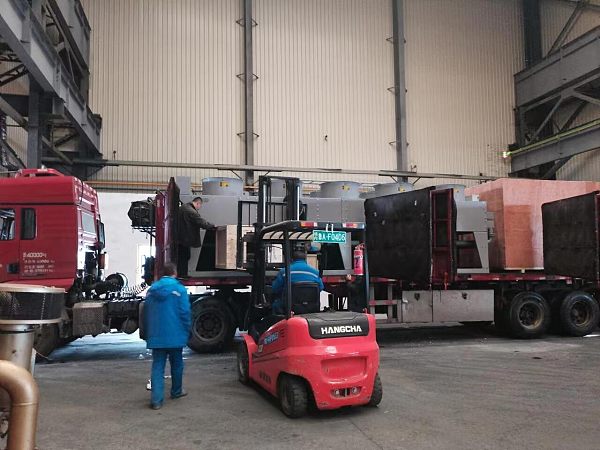

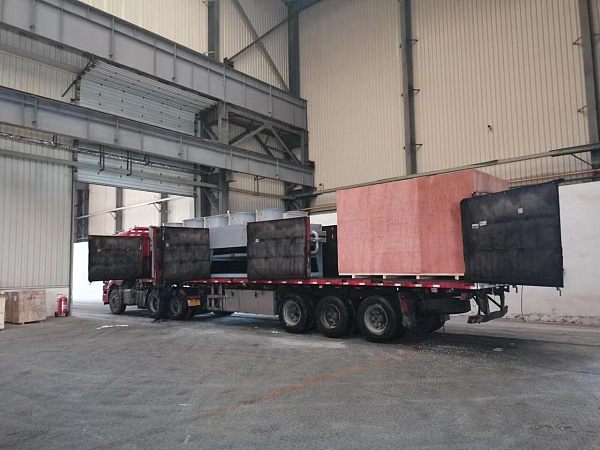

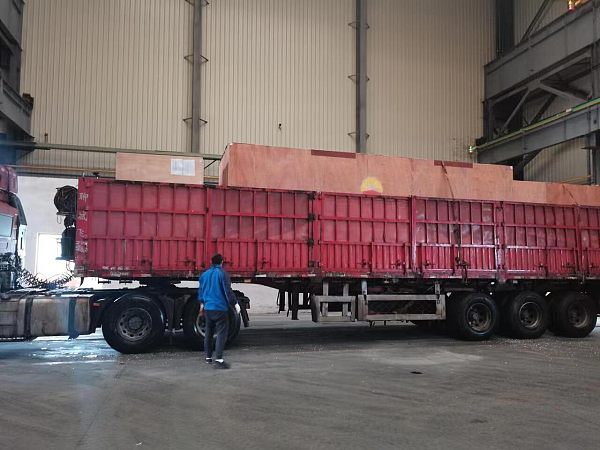

  • Pick up and ship
  • Pick up and ship
  • Pick up and ship
  • Pick up and ship
