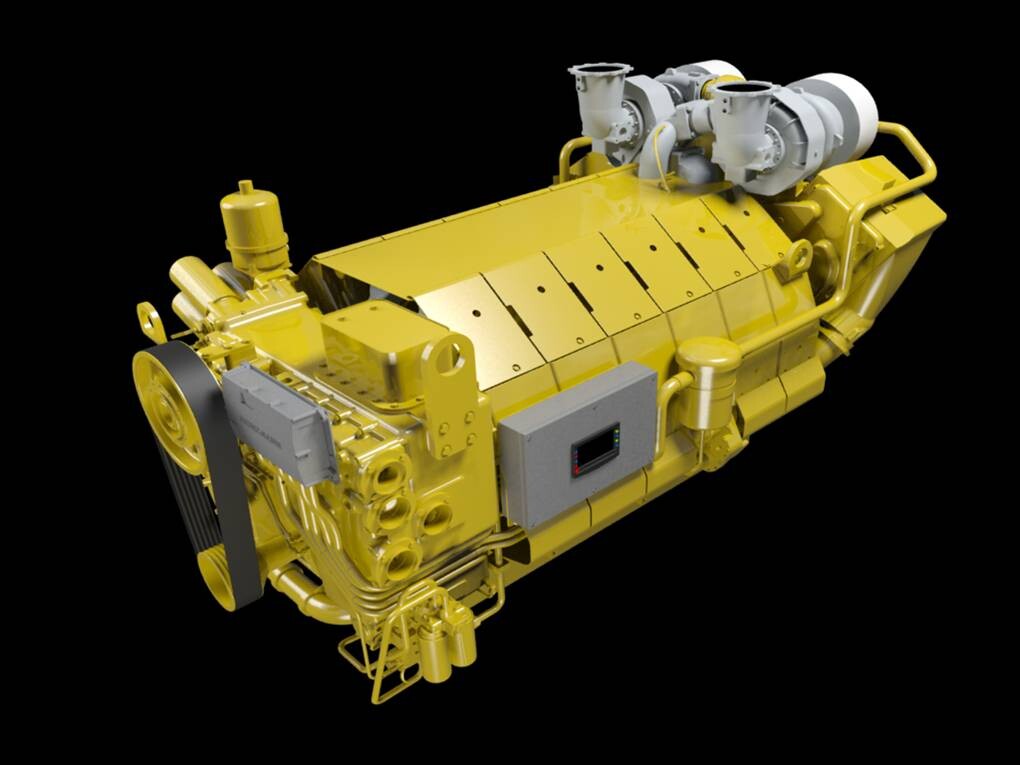

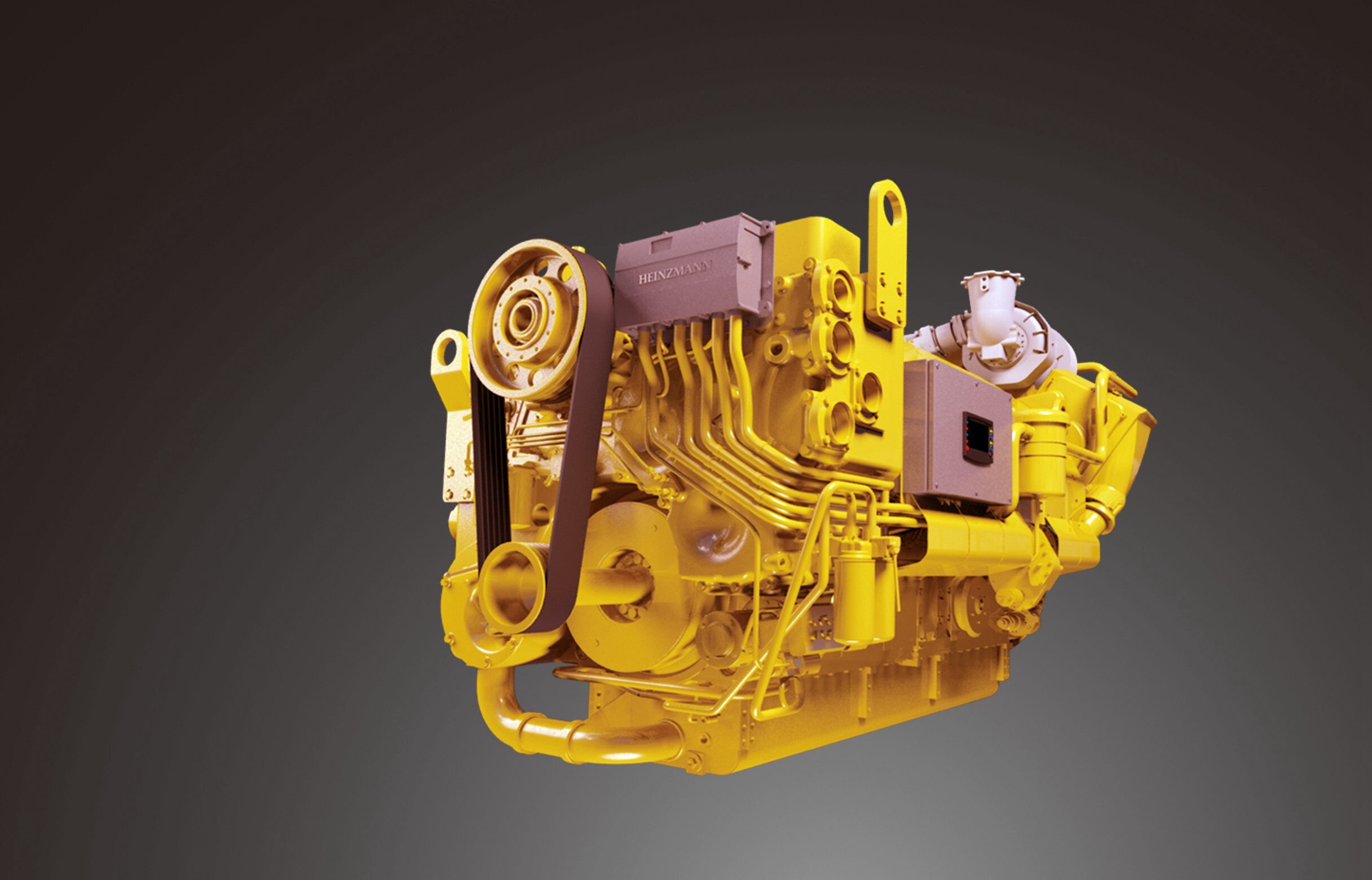

12V175 Diesel Engine 1097kW
12V175 diesel engine with high pressure, low energy consumption, high reliability, long life characteristics, Through the use of electronic control, high pressure common rail, Miller cycle, exhaust post-treatment, high efficiency supercharger and other new technologies,the engine power performance, economy, reliability, emission index and other aspects reach the international advanced level: the average effective pressure of diesel engine reaches 2.0MPa, the first overhaul period reaches 35,000 hours, the bare-machine emissions meet GB20891 II.
Phone : +86 15063431911
Wechat : +86 15063431911
Whatsapp : +86 16653606916
Email : fddlws@163.com
Contact Us

Product Description

Engine with fan and radiator
Engine model12V175PZL-1/0
Injection systemECU electric monoblock pump
GovernorElectronic Speed Governor
Cylinder&Arrangement12 cylinders,V type
Bore175mm
Stroke190mm
Rated power1097kW
Speed1200r/min
Displacement54.8L
Fuel consumption≤200g/kw.h
Oil consumption≤0.6g/kw.h
Oil Pan Capacity278L
Dimension3048x1848x2070mm
Weight10300kg







Hydraulic transmission coupling set

Genset model12V175PZL-1/0
Rated power1097kW
Speed1200r/min
Engine model12V175PZL-1
Hydraulic transmission coupler/Torque Converter ModelYOZJ750
Height of center930
